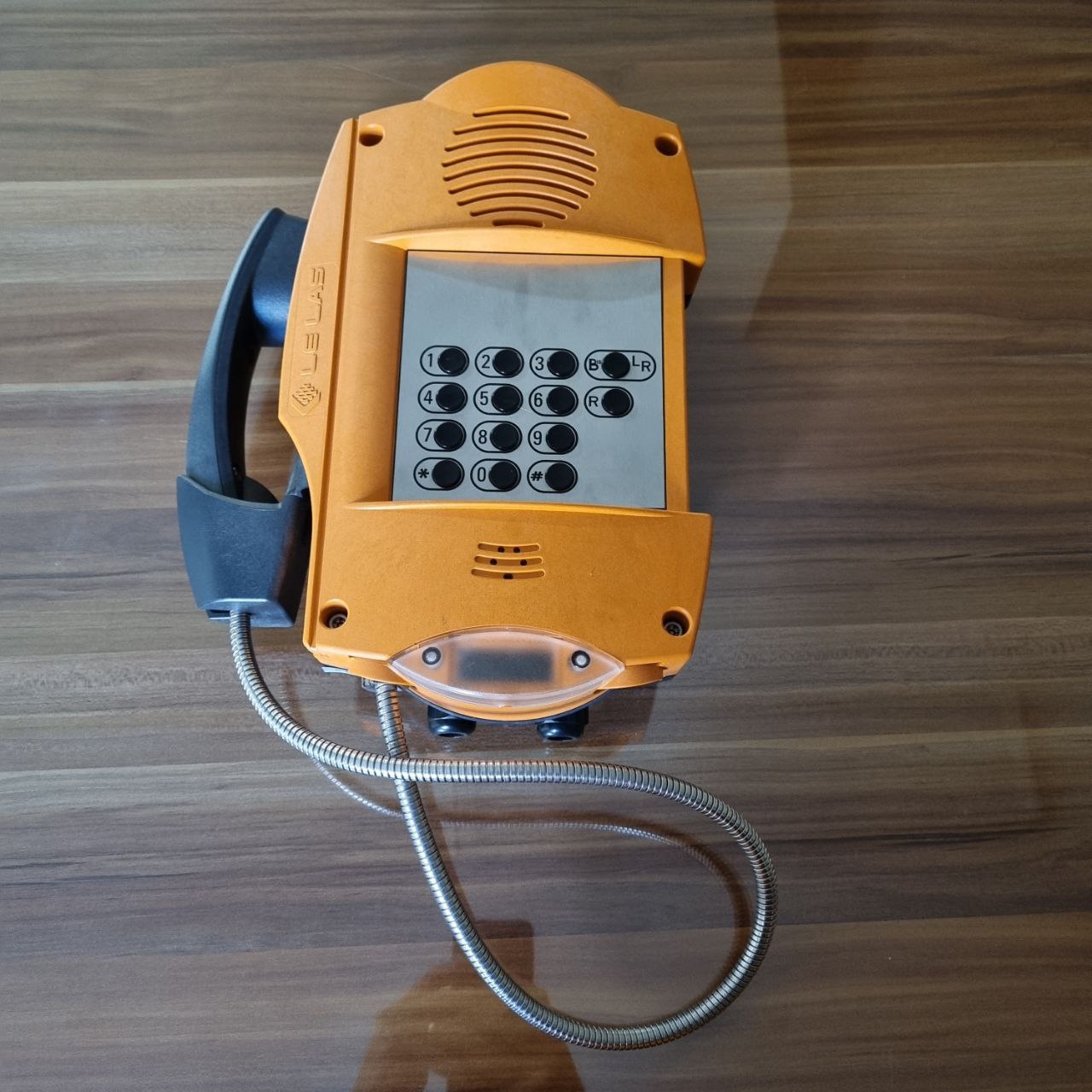

تلفن ضد انفجار برند للاس مدل TLA229A2

تلفن ضد انفجار

برند للاس فرانسه

دارای گواهی ضد انفجار

مناسب برای پروژه های صنعتی از قبیل پتروشیمی، پالایشگاه و ......







Electrical Characteristics:

Direct current supply: 12 to 48 Vdc

Consumption: < 30mA

Ringing voltage: 35 – 90 Va

Dialling: DTMF / decimal

Flashing/earth: adjustable

Electronic Bell: 90 to 95dB at 1 m.

Visual calling signal : On require

Noise cancelling: noise cancelling circuit

Hook: magnetic

Conversation Mode: By handset

Option : By headset



Other Specifications:

Body material / Color:.…………………………..…Polyester Carbon / RAL2003

Handset material / color : ……………………..…Polyester Carbon / Black

Handset cord: ……………………stainless steel (INOX) 150kg resistance

Loudspeaker/microphone: …………………….…vandal resistant /5W

Mounting: ……………………………………….…….…on wall

Termination: …………………………….……………Inside screw connections

Dimensions: : ……………………………………………… 201 X 320 X 113 mm

Weight: …………………………...…………………………………………………4.5 kg

IP-rating:………………………………………IP66 (Renforce IP67 as demand)

EEx protection: ………………………..EEx em [ib] ib IIC T5 / ATEX II 2 GD

Ex ibD tD A21 IP64 T100°C

Max. / min. amb. Temp:………………………………………..-20 C / + 60°C





Available Versions:

TLA229A2 : Telephone ATEX IIC with handset and keypad

TLA229A2F: Telephone handset, keypad and built in flashing

TLA229A2L: Telephone handset, keypad and Display

TLA229A2FL: with handset, keypad , display and built in flashing

Option code ‘/X’ : additional headset, fix at phone as demand
