پچ کورد SFP-10G-C1M

Alcatel-Lucent SFP-10G-C1M Compatible 10G SFP+ DAC Twinax Cable (1-meter, Passive, SFP+ to SFP+, 30AWG)

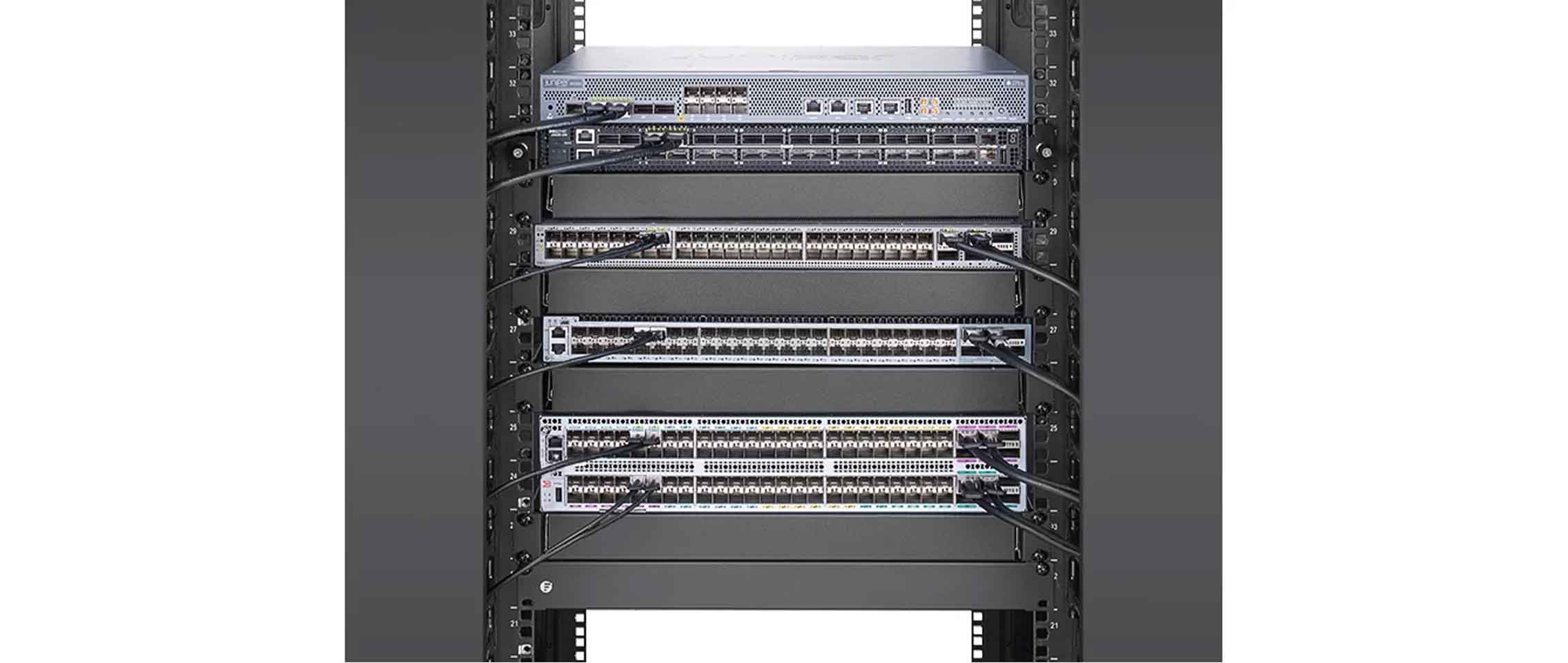

The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers.
The Passive Direct Attach Cable is an ideal 10GBASE Ethernet network solution that require reliability, low latency, and practically no power consumption. DAC cables are lower cost, more durable than optical fibers. This cable provides low insertion loss and ultra-low crosstalk. And it complies with IEEE 802.3, SFF-8431, and hot-pluggable QSFP28 MSA standards, ensuring reliability of your network with full system testing in targeted Switches.
Note: FS Box does not currently support changing H3C and HPE compatibility for DAC cables.

Note: The FS P/N is changed from SFPP-PC01 to SFP-10G-PC01, but the product is the same. Only the FS P/N has been changed.



Specifications

Alcatel-Lucent Compatible: SFP-H10GB-CU1M

Vendor Name: FS

Connector Type: SFP+ to SFP+

Max Data Rate: 10Gbps

Media: Copper

Power Supply: 3.3V

Minimum Bend Radius: 23mm

Wire AWG: 30AWG

Cable Length: 1m (3ft)

Jacket Material: PVC (OFNR)

Cable Type: Passive Twinax

Temperature: 0 to 70°C (32 to 158°F)

Power Consumption: ≤0.1W

Application: 10G Ethernet

Protocols: 1x InfiniBand QDR, DDR, SDR, 10 Gigabit Ethernet, Fibre Channel

Warranty: 5 Year
